Short answer: a dock can only do what your laptop's port supports. First find out whether your laptop has Thunderbolt 4 or 5, USB4, or plain USB-C, how many external monitors it supports, and how much charging power it needs. Then buy a dock of the same standard, with enough charging wattage and the right video outputs, and use the cable that came with it. A cheap bus-powered hub is fine for a keyboard, a card reader and one monitor; for two or more monitors and fast storage, you need a proper Thunderbolt or USB4 dock.
Why is USB-C so confusing?
Because USB-C is only the shape of the connector. Behind the same oval port there can be very different capabilities: 480 Mbps or 80 Gbps data, no video or several monitors, 15 W or 240 W of charging. The names have not helped. The USB Implementers Forum, which manages the standard, now asks manufacturers to stop using technical names such as "USB 3.2 Gen 2×2" or "USB4 Version 2.0" on packaging, and to use plain speeds instead: USB 5Gbps, 10Gbps, 20Gbps, 40Gbps and 80Gbps. Not every brand follows this yet.
What do the standards mean?
| Standard | Data speed | Minimum display support | Laptop charging |
|---|---|---|---|
| USB-C (USB 5–20 Gbps) | 5 to 20 Gbps | Depends on the laptop; often one monitor, sometimes none | Varies |
| USB4 (USB 40Gbps) | Up to 40 Gbps | Depends on the laptop | Varies |
| Thunderbolt 4 | 40 Gbps | Two 4K monitors | Required up to 100 W, available up to 140 W |
| USB4 Version 2.0 (USB 80Gbps) | Up to 80 Gbps | Depends on the laptop | Varies |
| Thunderbolt 5 | 80 Gbps, up to 120 Gbps one way | Two 6K monitors | At least 140 W, up to 240 W |
Thunderbolt figures from Intel's Thunderbolt 5 technology brief; USB figures from USB-IF.
The key difference is that Thunderbolt sets minimums. Any Thunderbolt 4 laptop must support two 4K monitors and fast external storage; a laptop that just says "USB4" or "USB-C" may or may not. Thunderbolt 5 is built on USB4 Version 2.0, and its "Bandwidth Boost" of 120 Gbps sends more data in one direction, mainly to drive high-resolution monitors.

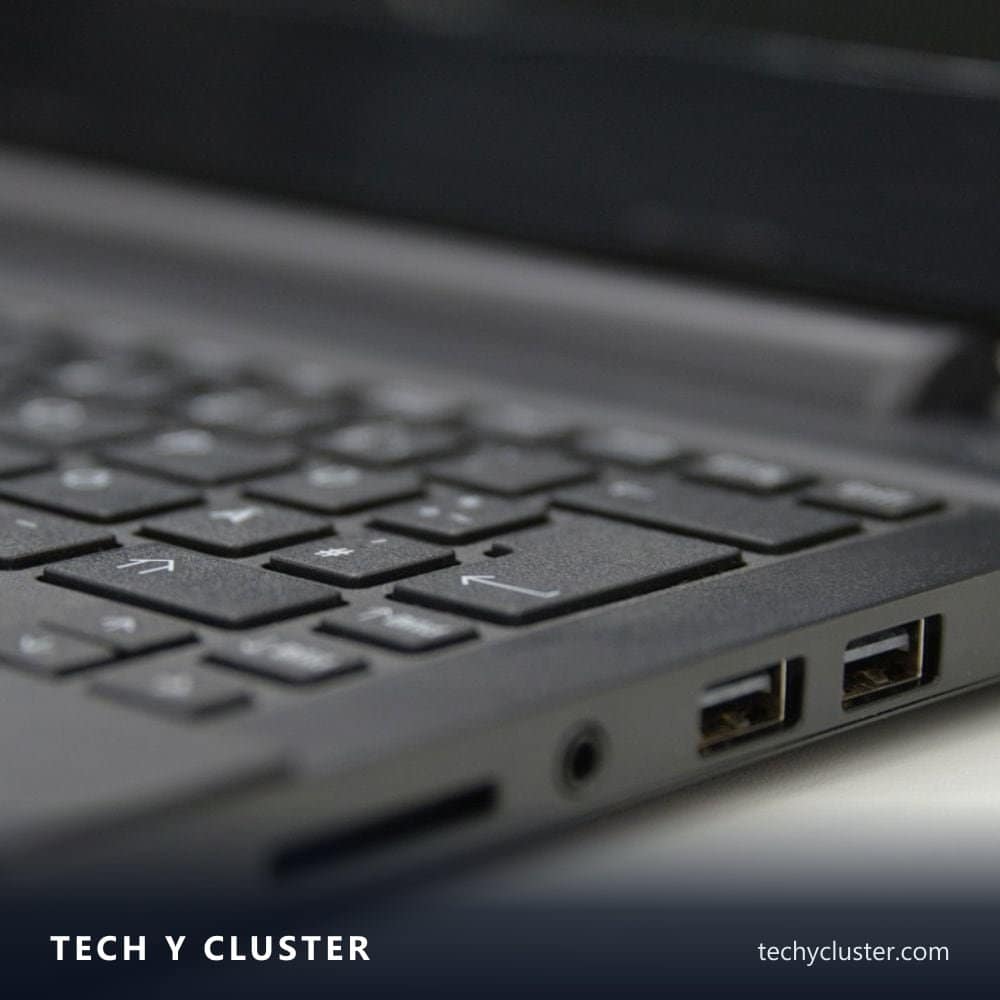

How to identify your port: Thunderbolt ports usually have a small lightning-bolt icon next to them. Otherwise check the laptop's specification page for "Thunderbolt", "USB4" or "DisplayPort Alt Mode", or look up the model on the manufacturer's support site.
How do docks drive monitors?
There are three ways, and they explain most "my second monitor doesn't work" problems.
1. DisplayPort Alt Mode. The USB-C port sends a DisplayPort video signal directly. It is simple and reliable, but on basic hubs the video and USB data share the connection. A common arrangement uses half the lanes for a 4K monitor and leaves the rest for 10 Gbps USB, so a cheap hub with a 4K screen, Ethernet and a fast drive can run out of bandwidth.
2. Thunderbolt and USB4 tunnelling. Video and data travel together over a 40 or 80 Gbps link, which is how a Thunderbolt dock drives two or three monitors while also charging and connecting storage.
3. DisplayLink. The dock contains its own graphics chip and the laptop sends compressed video over USB, which needs a driver from Synaptics. It is the workaround for laptops that support few monitors, but it uses more processor power and is not ideal for video or gaming.
The Mac limit that surprises people
Each Apple chip supports a fixed number of external displays, whatever the dock. Apple's current figures:
- MacBook Air (M4 and M5): up to two external displays, with the laptop's own screen still working.
- MacBook Pro: two with M4, M4 Pro or M5, three with M5 Pro, four with M4 Max or M5 Max.
macOS also does not extend the desktop across several monitors daisy-chained from one DisplayPort output (a feature called MST); as the dock maker Plugable explains, such monitors only mirror each other on a Mac. If you need more screens than your Mac supports, a DisplayLink dock is the usual answer.
How much charging power do you need?
USB Power Delivery negotiates how much power flows. The 2021 revision, USB PD 3.1, raised the maximum from 100 W to 240 W by adding higher voltages.
- Check your laptop's own charger wattage and choose a dock that supplies at least that much to the laptop. Many docks advertise a total power figure but deliver less to the laptop port.
- Thin laptops typically need 45 to 65 W; performance laptops 100 W or more; some Dell docks deliver more to Dell laptops than to other brands.
- If the dock supplies less than the laptop needs, the laptop may charge slowly or drain under heavy load.
Why does the cable matter so much?
Many "broken dock" problems are cable problems.
- Charging-only and USB 2.0 cables look identical to fast ones. Certified USB-C cables now carry a USB-IF logo showing speed and wattage, for example "40Gbps/240W".
- Length is limited. Passive 40 Gbps cables are commonly limited to about 0.8 m; passive Thunderbolt cables are typically 1 m or shorter. Longer runs need active cables.
- Use the cable that came with the dock unless you know the replacement is rated for the same speed and wattage.
Hub or dock?
| Bus-powered hub | Powered dock | |
|---|---|---|
| Power | Takes power from the laptop | Has its own power supply and charges the laptop |
| Monitors | Usually one | Two to four, depending on standard and laptop |
| Bandwidth | Shared, often 10 Gbps or less | 40 to 80 Gbps |
| Typical price | $20 to $80 | $200 to $650 |
| Best for | Travel, occasional desk use | A permanent desk setup |
Examples of current Thunderbolt 5 docks
US list prices from manufacturers' sites in September 2026:
| Dock | Laptop charging | Notable features | Price |
|---|---|---|---|
| Belkin Connect Thunderbolt 5 Dock | 140 W | Up to three 4K monitors on Thunderbolt 5 Windows laptops | $349.99 |
| Anker Prime Thunderbolt 5 14-in-1 | 140 W | HDMI 2.1 or DisplayPort 2.1 output, 2.5 Gb Ethernet | $399.99 |
| CalDigit TS5 Plus | 140 W | 10 Gb Ethernet, ten USB ports, SD card readers | $499.99 |
| Dell Pro Thunderbolt 5 Smart Dock | 240 W (300 W for Dell laptops) | Up to four monitors, remote management for IT | $624.99 |
A Thunderbolt 5 dock works with Thunderbolt 4 and USB4 laptops too, but at their lower limits; with a Thunderbolt 4 laptop, a Thunderbolt 4 dock usually costs less and does the same job.
A quick buying checklist
- Laptop port: Thunderbolt 5, Thunderbolt 4, USB4 or USB-C, and does it support video?
- Monitor count and resolution: check your laptop's (or Mac chip's) external display limit.
- Charging: dock output to the laptop at least equal to your laptop's charger.
- Ports you actually use: Ethernet, USB-A for older accessories, card reader, audio.
- Video outputs: DisplayPort or HDMI matching your monitors, or USB-C monitors with a single cable.
- Cable: keep the supplied one and label it.
For choosing the screens themselves, see monitors for engineering and coding. If you are still choosing the laptop, check its port specifications alongside the processor and graphics advice in how to pick a laptop for engineering work, and a good keyboard completes the desk: see mechanical keyboards for long typing sessions.
FAQ
Is USB4 the same as Thunderbolt 4?
They share the same underlying technology and 40 Gbps top speed, but Thunderbolt 4 guarantees minimum features, such as two 4K monitors and 100 W charging, that USB4 laptops do not have to provide.
Will a Thunderbolt 5 dock work with my older laptop?
Usually yes, over Thunderbolt 4, USB4 or even basic USB-C, but only at your laptop's own limits. You may get fewer monitors and lower speeds than the box suggests.
Why does my second monitor not work on my Mac?
Most likely your Mac's chip supports fewer external displays than you connected, or the dock uses MST daisy-chaining, which macOS only mirrors. A DisplayLink dock is the common workaround.
Can any USB-C cable be used with a dock?
No. Charging-only and USB 2.0 cables look the same but cannot carry fast data or video. Use a certified cable with a speed and wattage logo, as short as practical.
